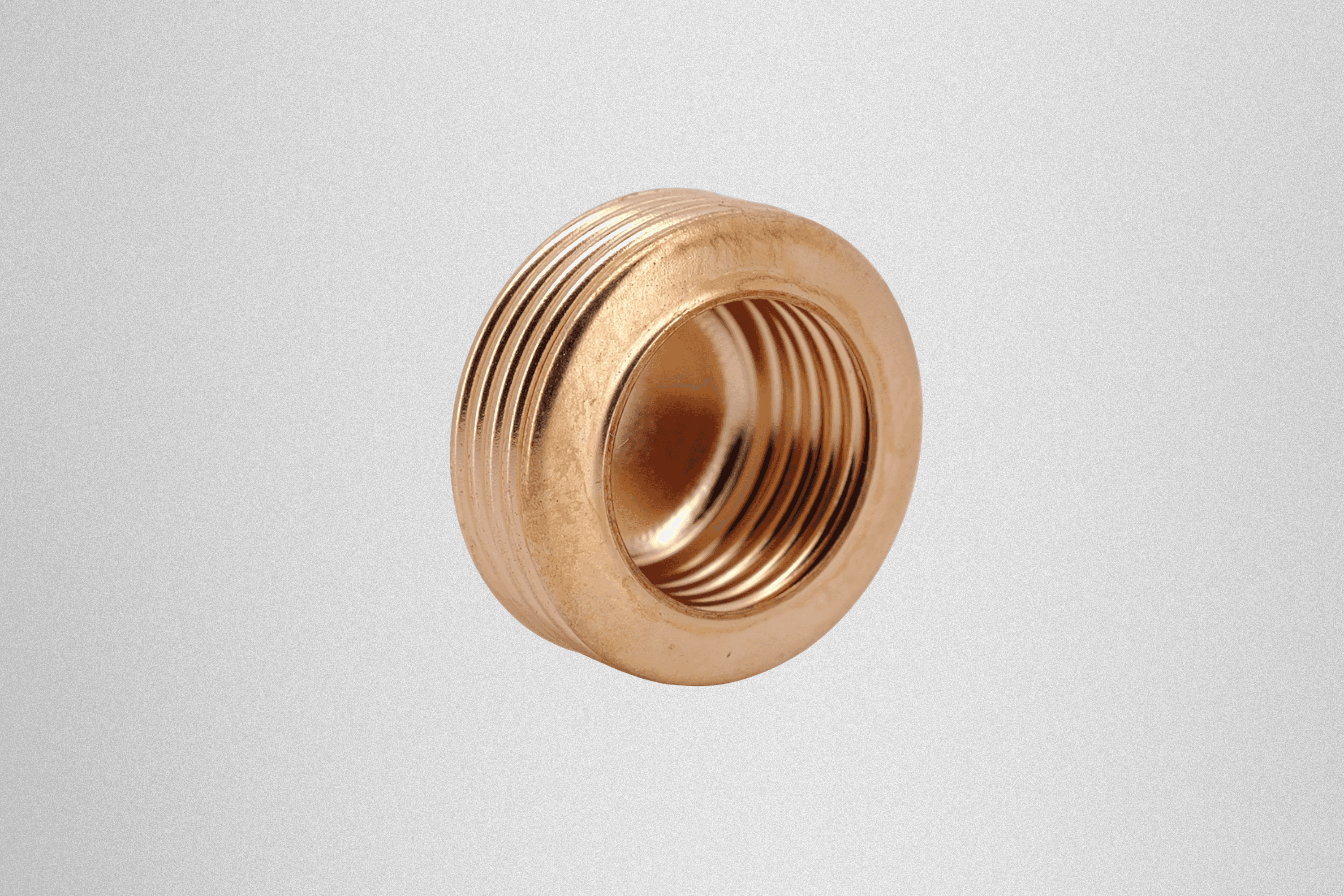

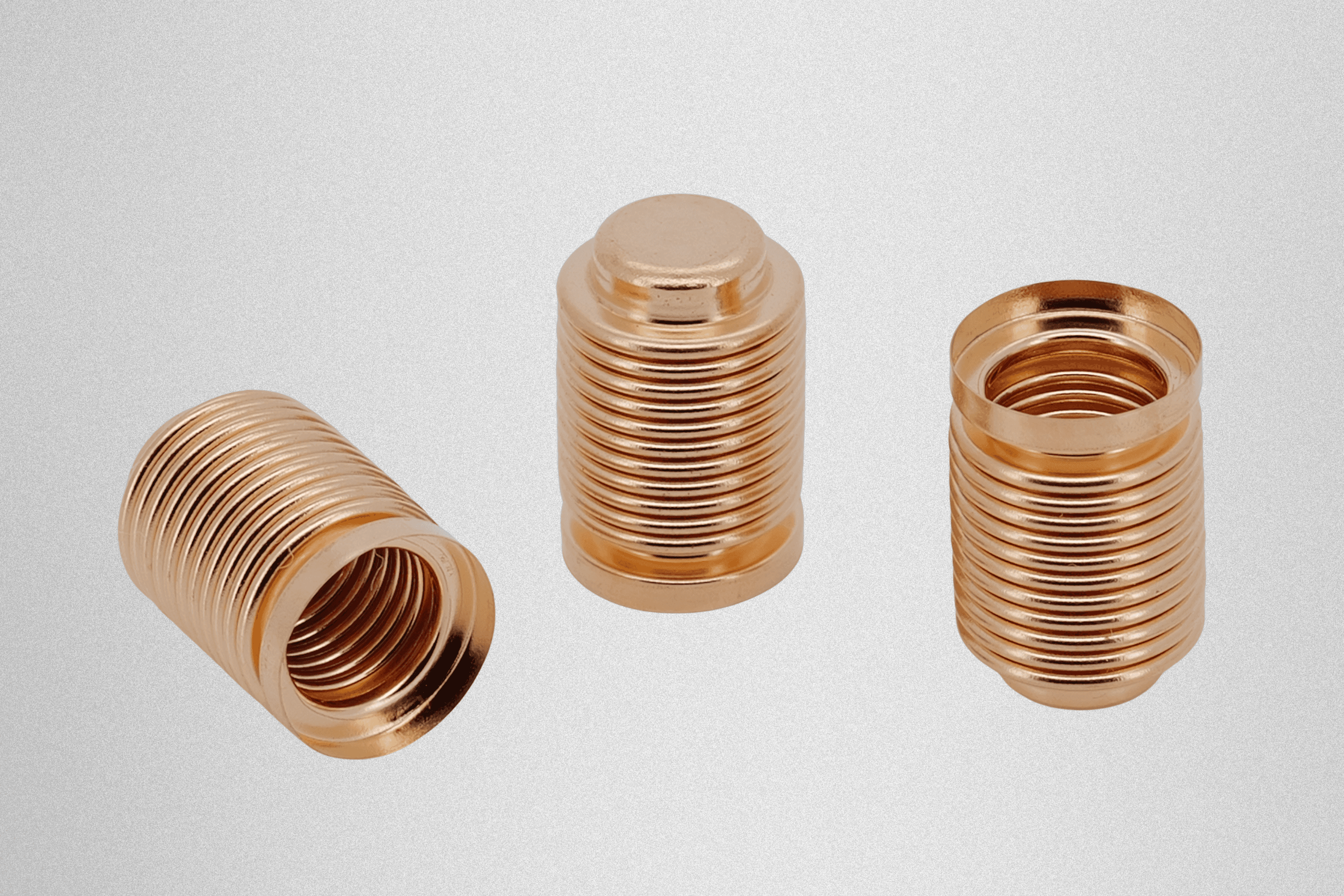

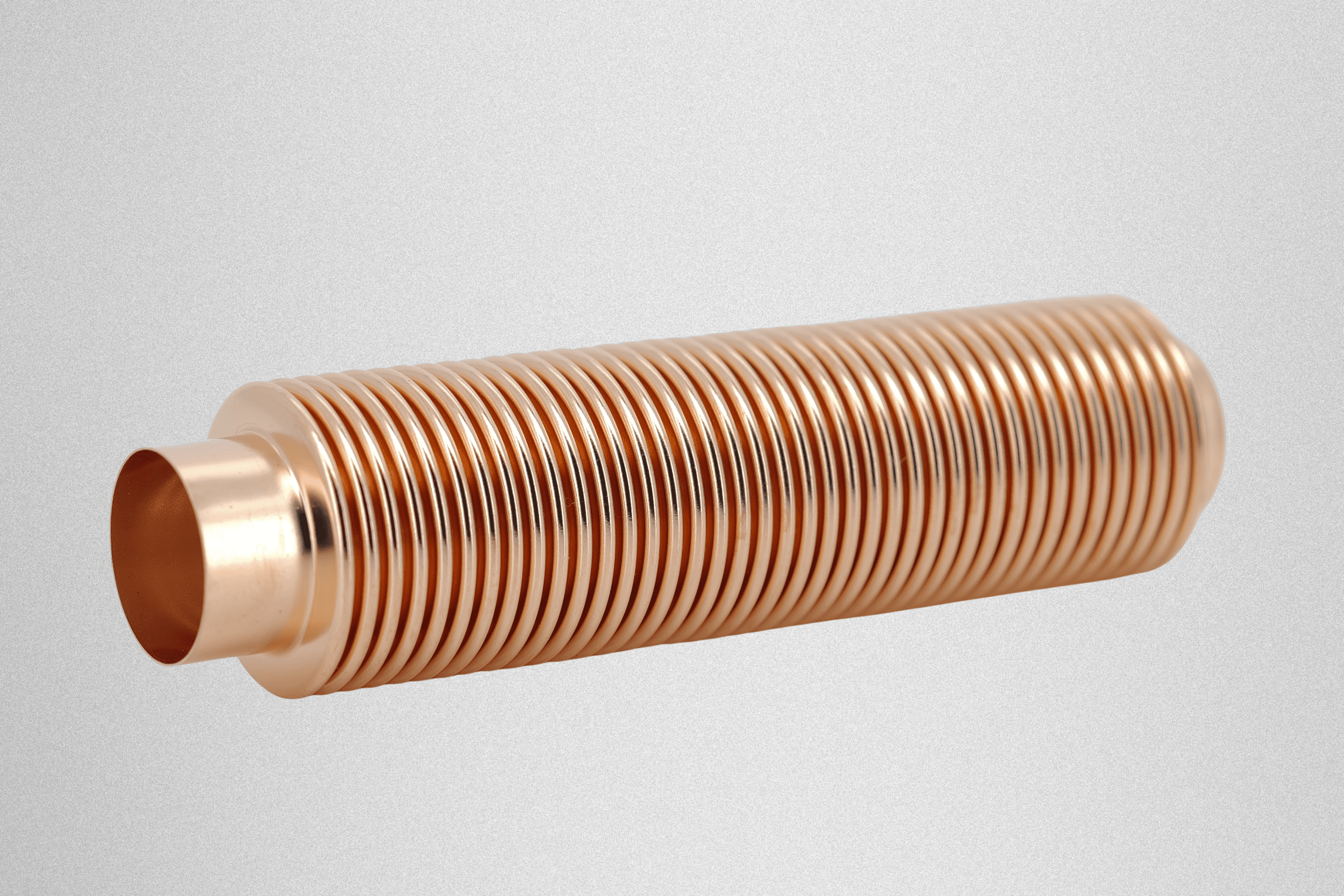

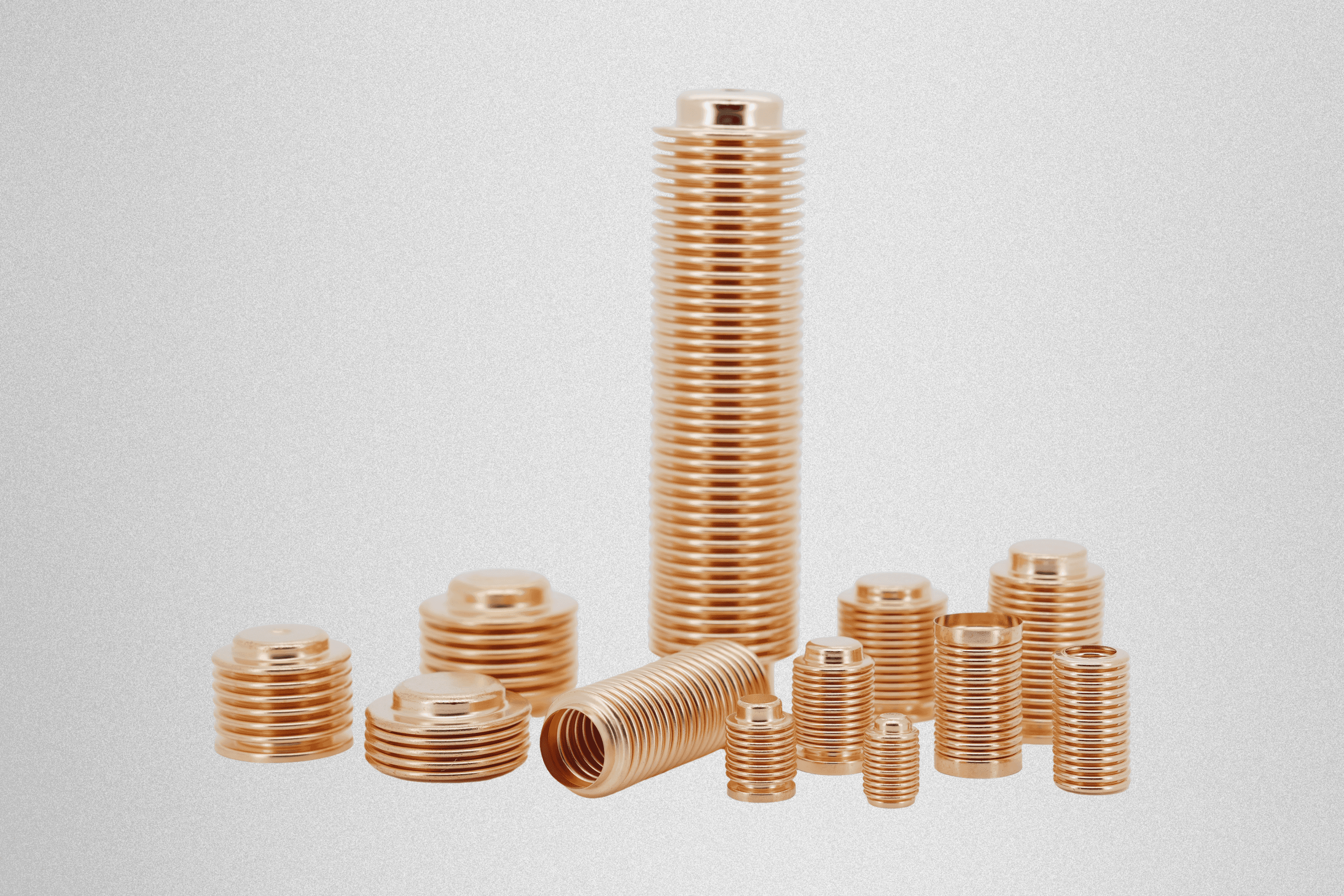

Bronze and Brass Bellows
Hanovix hydroformed bronze and brass bellows offer superior corrosion resistance, electrical conductivity, non-magnetic properties, and lasting performance in low-temperature applications
/
Challenge
(01)
The theory was simple, bronze & brass elongation was not.
With only 40–50 % elongation versus stainless steel’s 60 %+, achieving uniform wall thickness below 0.10 mm and flawless convolutions demands absolute control over hydraulic pressure, lubrication, and raw material consistency—any deviation risks thinning, cracking, or early fatigue failure.
/
Advantages
(02)
Precision without compromise. Performance without limits.
Our automatic quick-hydroforming delivers mirror-smooth, scratch-free bronze & brass bellows with perfectly uniform wall thickness, full material ductility, seamless construction, and zero-leak reliability straight from the machine – every part, every time.
/
Features
(03)
Key Features of Bronze and Brass Bellows
Ultra-uniform wall thickness (±0.005 mm tolerance) thanks to fully automated pressure profiling
No heat-affected zone or work-hardening from welding – 100 % seamless, cold-formed convolutions retain full alloy ductility and conductivity
Faster cycle times (30–90 seconds per bellows) – shorter lead times and lower cost even for small batches
Consistent grain structure and spring rate – every bellows performs identically, critical for switchgear contacts and vacuum interrupters
No lubricant residue inside – clean-room compatible straight from the machine, ideal for medical, cryogenics, and UHV applications
Higher convolution depth-to-thickness ratio than traditional punch-formed bronze/brass – more stroke in less axial space
Immediate helium leak testing in-line – every single unit is tested
Hanovix hydroformed bronze & brass bellows are the go-to solution for engineers tackling corrosion in industrial valves, high-vacuum seals, mechanical actuators, and pressure gauges where electrical conductivity and fatigue resistance can't be compromised.
