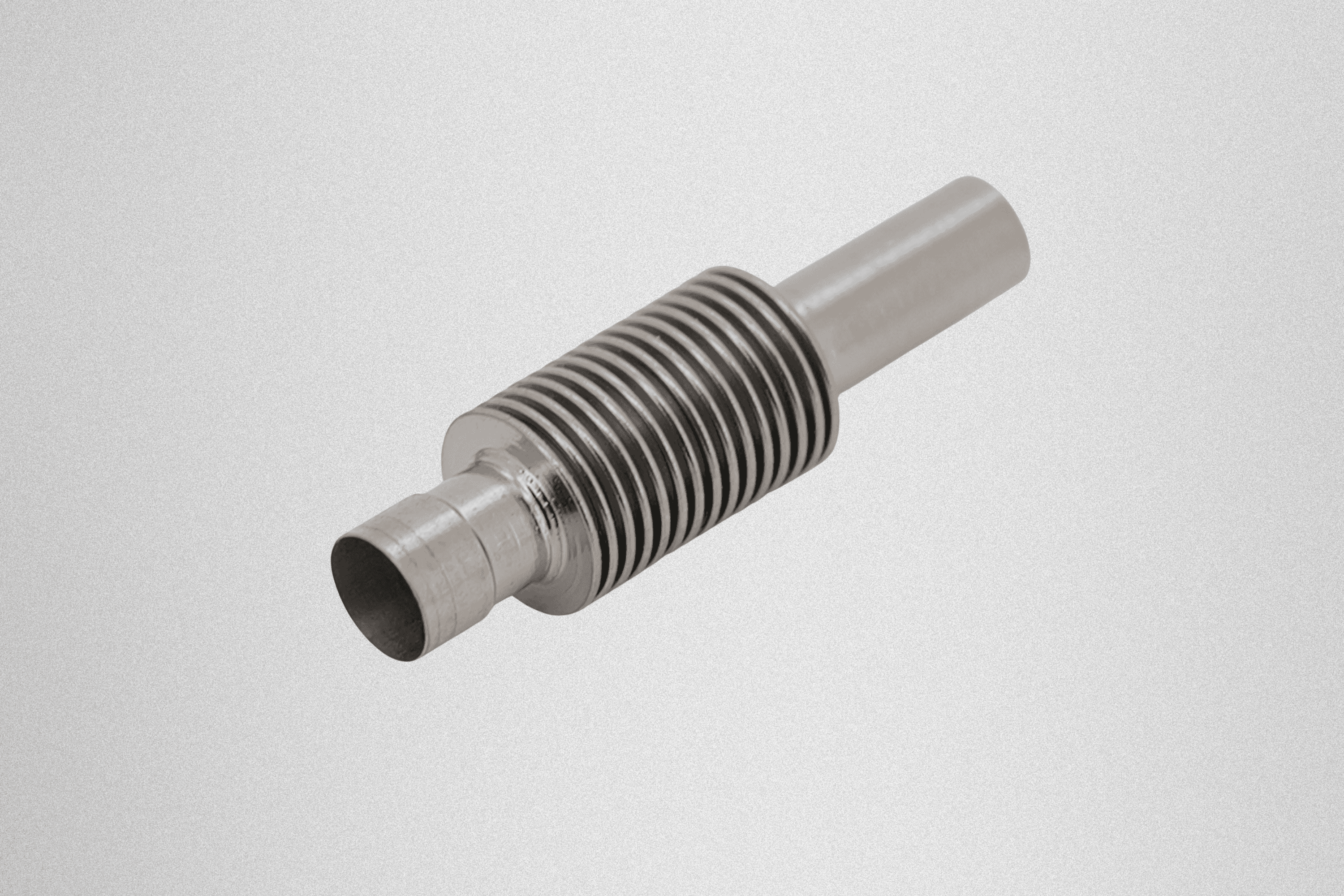

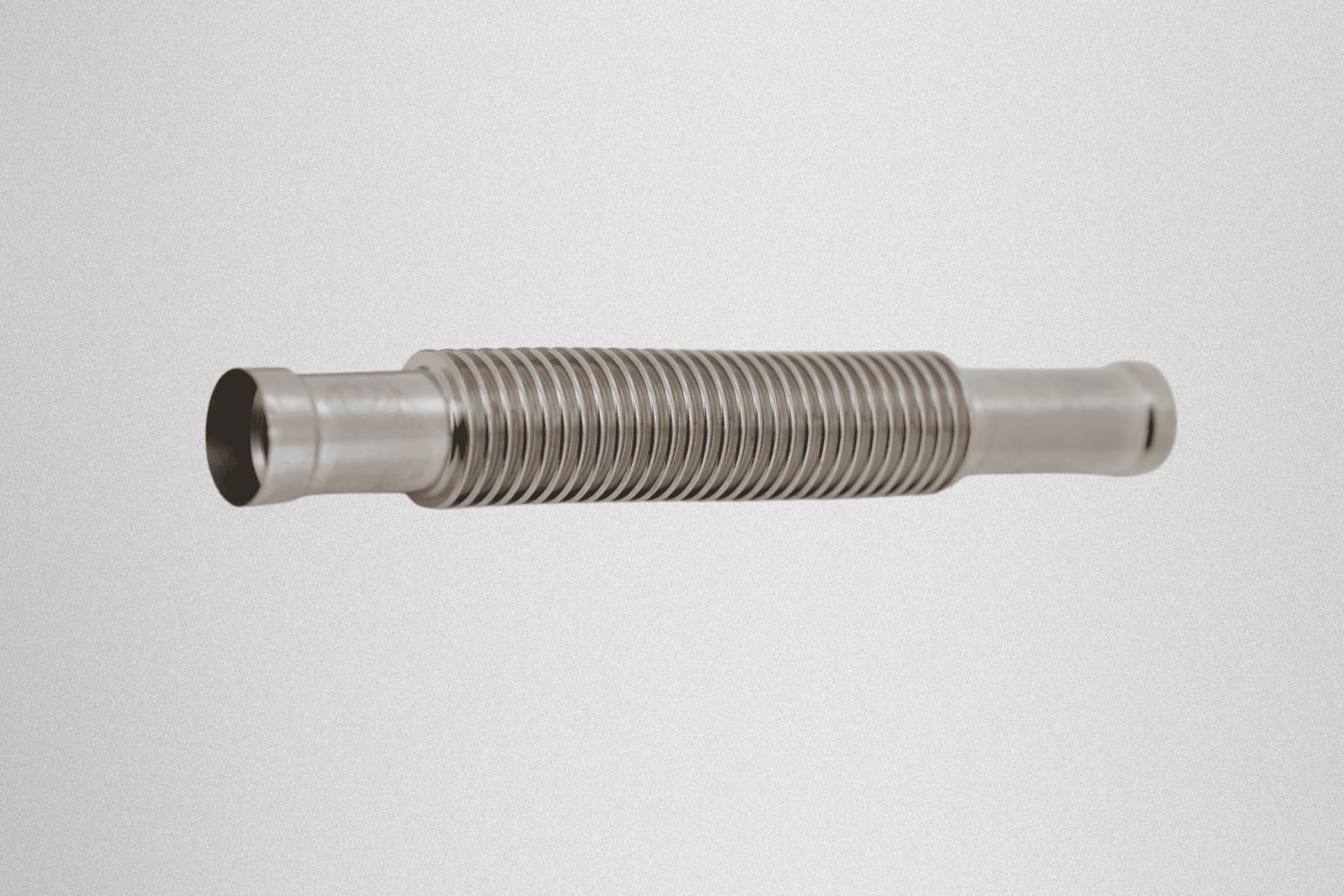

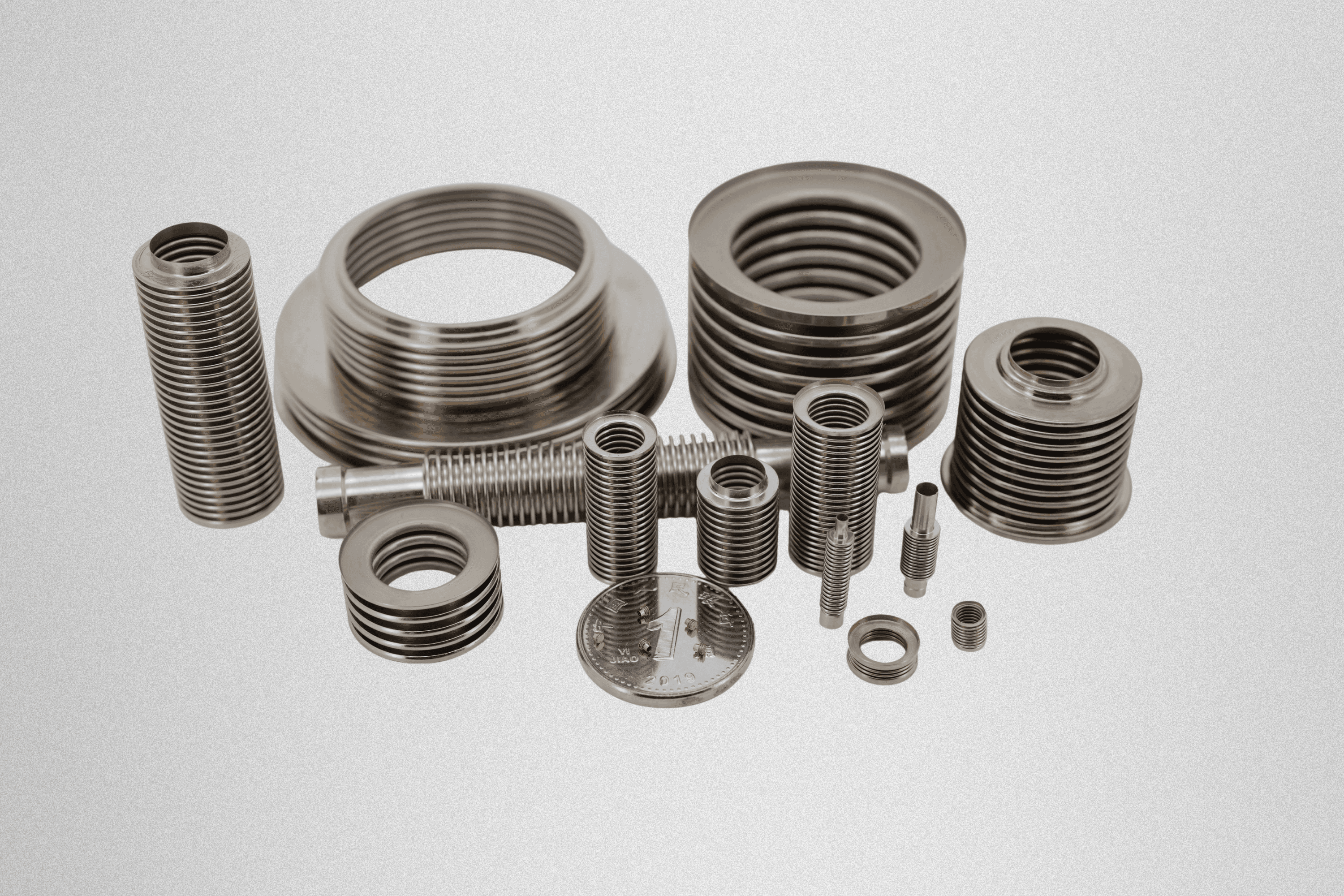

Electroformed Bellows
We create electroformed bellows via sophisticated electroforming techniques that ensure exceptional quality and finesse.
/
Challenge
(01)
The principle was clear, but their bath purity was not.
Excellent electroformed bellows demand ultra-pure electrolyte chemistry and flawless mandrel tooling—any impurity or surface defect destroys uniformity and fatigue life.
/
Advantages
(02)
We turned the impossible into standard production.
Ultra-thin seamless walls, perfect concentricity, zero leakage even after millions of cycles, and complete design freedom no other process can match.
/
Features
(03)
Key Features of Electroformed Bellows
Key Advantages of Hanovix Electroformed Bellows
Wall thickness from 0.025 mm – lighter than any welded or hydroformed part
100 % seamless – true zero-leak performance in UHV and aggressive media
Up to 10× longer fatigue life than conventional metal bellows
Operating range –196 °C to +650 °C without losing elasticity
Any shape, any convolution profile, any end configuration – in one piece
Hanovix electroformed bellows immediately became the first choice for every application where fatigue time is no longer an option.
